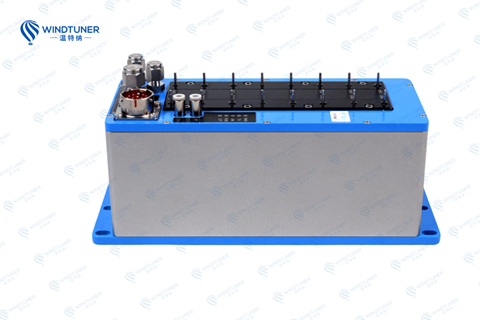

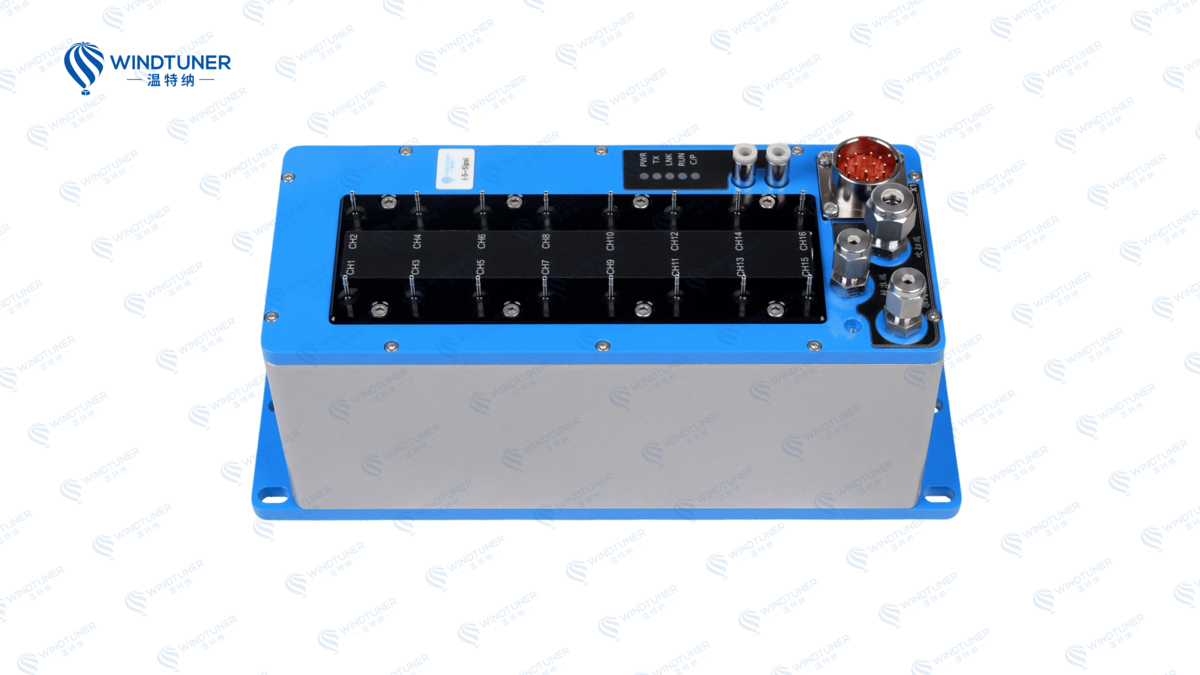

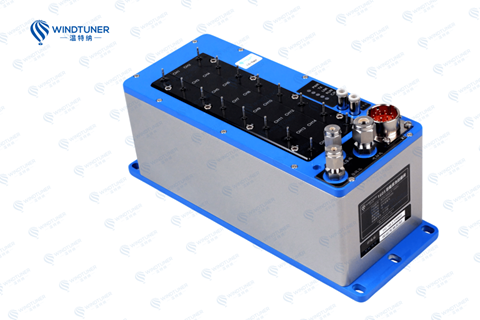

The Ethernet Intelligent Pressure Scanner
Accurate , Stable , High-Performance
The Windtuner Ethernet Intelligent Pressure Scanner is specifically engineered for aircraft engines, gas turbines, and wind tunnel facilities. Our scanners can be custom designed and produced to meet special and individual demands of specific fluid dynamic
Core Properties
Accuracy as low as ±0.05% full scale
Maintenance-free internal pneumatic valve system
Data acquisition, purging, calibration functions
Supports full-scale calibration, internal zeroing, and configurable multi-point calibration
Complies with IEEE1588V2-2008 PTP
Provides timestamp output for real-time data stream collection
Sampling rate of 500Hz/channel
Remote firmware updates & custom software solutions
Traceable CNAS calibration certificates available
Customization for pressure ranges between 0-850psi
TCP/IP communication protocol
Applicable in wind tunnel tests, flight test programs, turbomachinery applications, and other testing fields
Choose the product or service you need!Product Parameters
| Indicators | Parameters / Descriptions |
|---|---|
| Power supply | (18~36) VDC ; <120mA |
| Working temperature range | (0-60)℃, (-30-60)℃ |
| Working environment humidity | Relative humidty<90%, non-condensing |
| Accuracy class | Class 0.05 is optional; please refer to the equipment nameplate for details |
| Total thermal error | ±0.001% FS/℃ |
| Indicators | Parameters / Descriptions |
|---|---|
| A/D | 24 |
| Communication protocols | TCP/IP, UDP |
| Sampling frequency | ≤500Hz/CH (support for user-defined adjustment by users) |
| Trigger mode | Support software/hardware/Timed triggers |
| Number of Channels | 16 channels/unit |
Certifications & Accreditations
CNAS
Calibration testing center accredited by CNAS
CE
Products meet the requirements for CE certificate of EU
ISO
Windtuner pressure scanners match the ISO standard
BAC
Products certified by GJB 9001C-2017 military-grade standards
Global Partnerships
Expand the market with China’s leading flow field measurement enterprise
Our solution
Find out how we can help you
Support center
Know our products in detail
News
27 Apr 2026

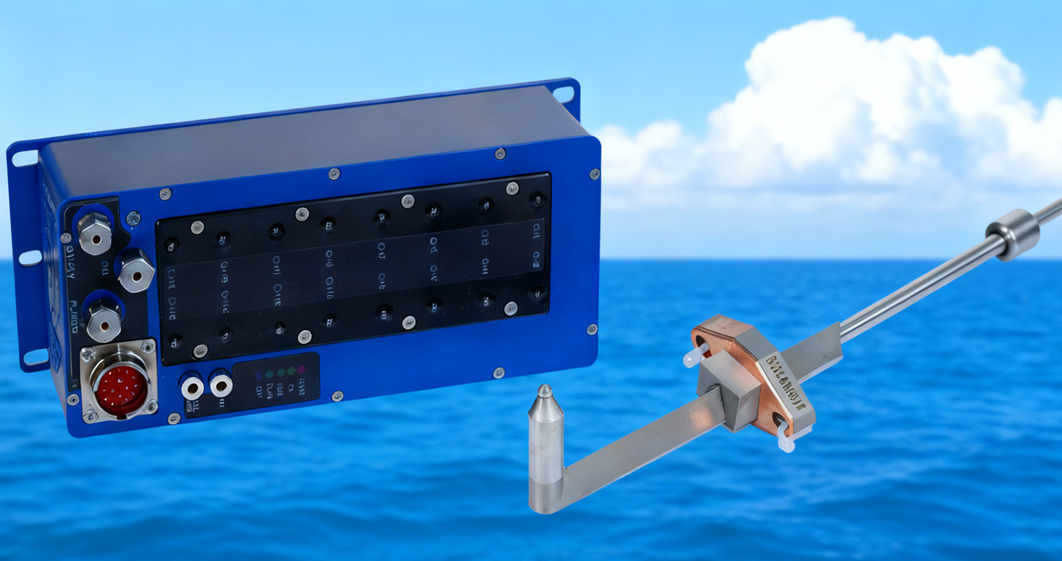

Pressure Scanners, Probes, and Software: Building a Complete Measurement Chain
