Thermocouple Acquisition Instrument
Thermocouple Acquisition Instrument

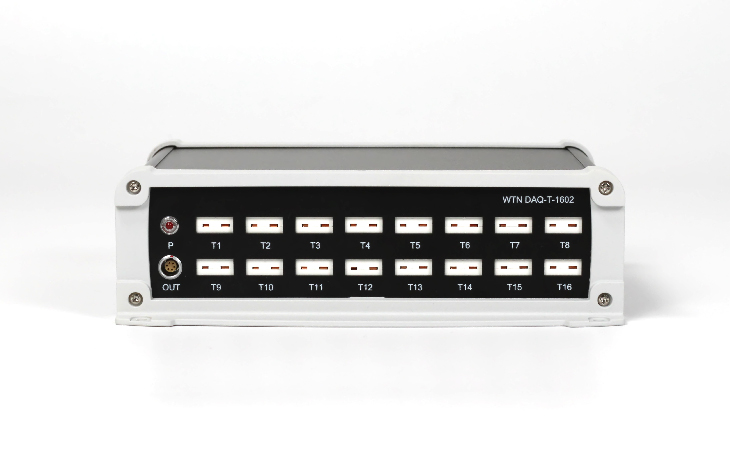

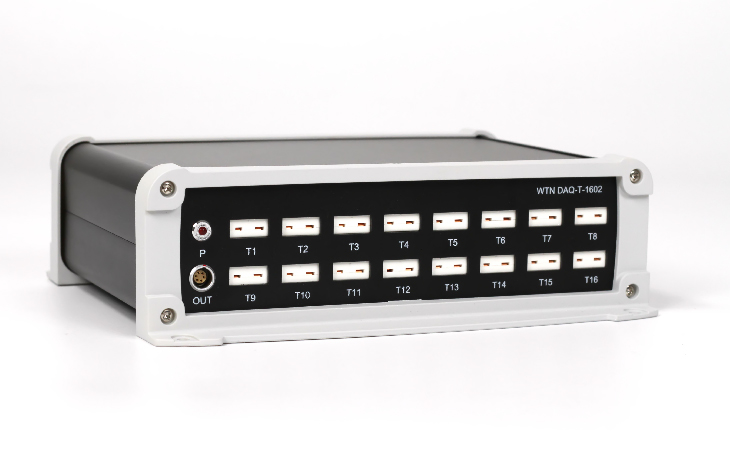

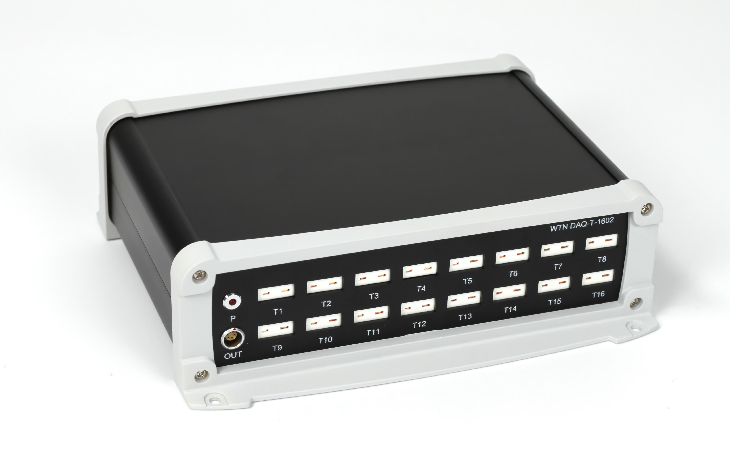

Thermocouple acquisition instrument serves as the main device fortemperature acquisition in the flow field.The WINDTUNER Thermocoupleacquisition instrument(WTN DAQ-T)can provide 16-channel differentialtemperature acquisition interface,adaptable to a variety of types ofthermocouples(such as Type K,Type T,Type N,etc.),which is used inconjunction with thermocouples,total temperature probes orcompositeprobes for the acquisition of flow field temperature parameters.
±0.1% accuracy
Suitable for thermocouple types such as J/K/T/E/R/S/B/N
Real-time data collection, monitoring and viewing analysis
Product function
Each channel can be individually configured for thermocouple type
The channels and communication ports are photoelectrically isolated,with an isolation voltage of 2kV
Enables rapid networking and parallel connection of multiple devicesto build ameasurement and control system
Supports real-time data acquisition,monitoring and data viewing andanalysis
Technical data
Product parameters
Input channel16 differential analogue input
Thermocouple typeJ,K,T,E,R,S,B,N,etc.
Sampling frequency10Hz/CH
Resolution16bit
Working temperature-25℃~75℃
Power supply18-36VDC
Communication interface10/100M Adaptive Ethernet
Product Gallery

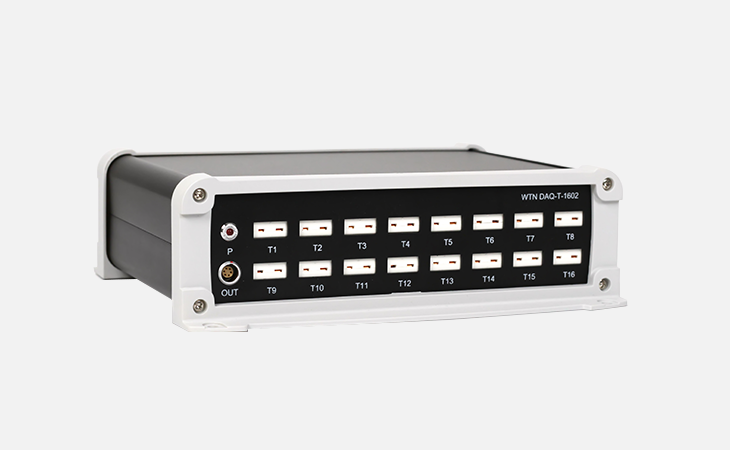

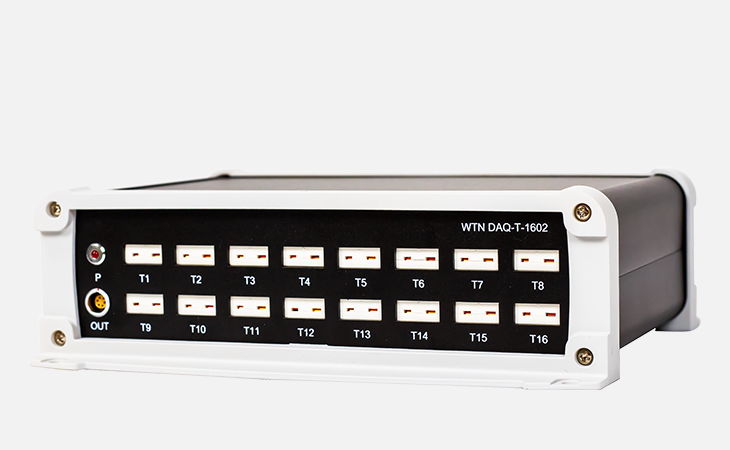

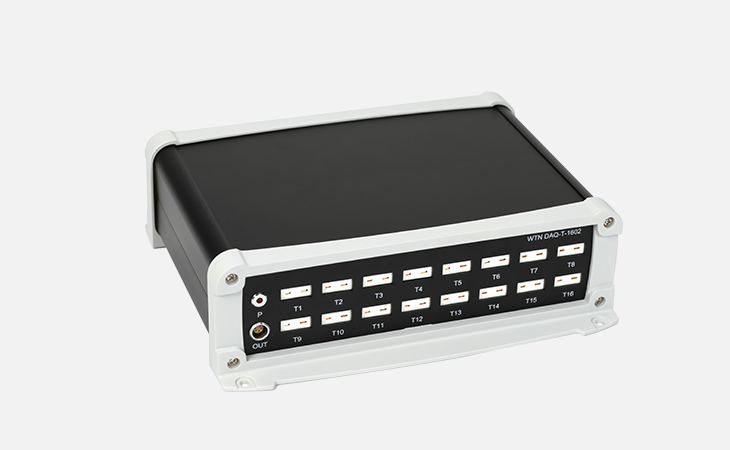

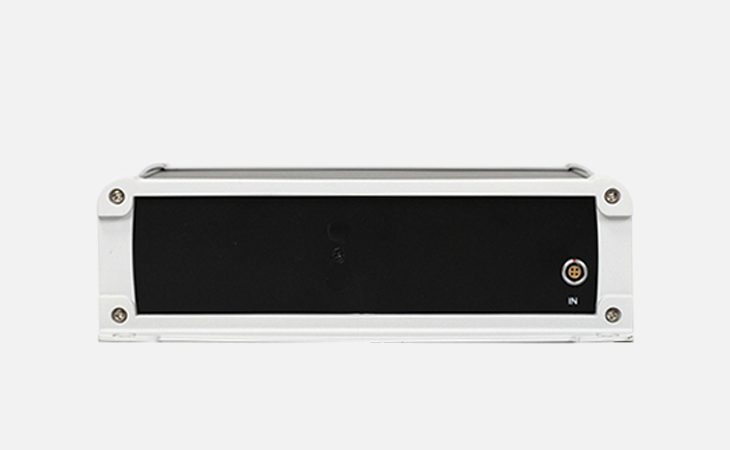

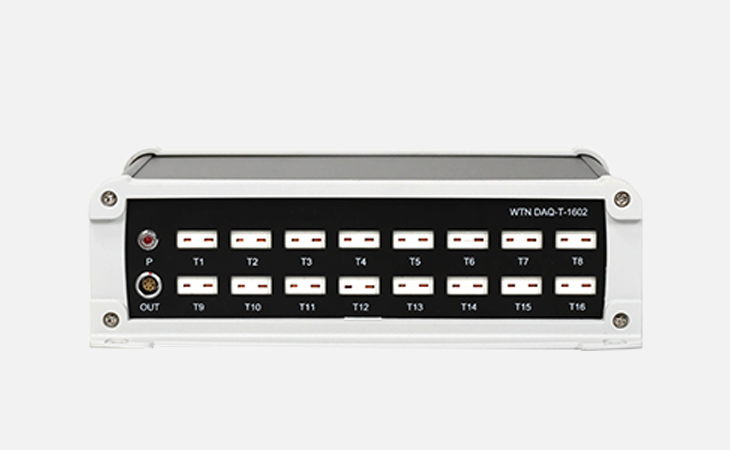

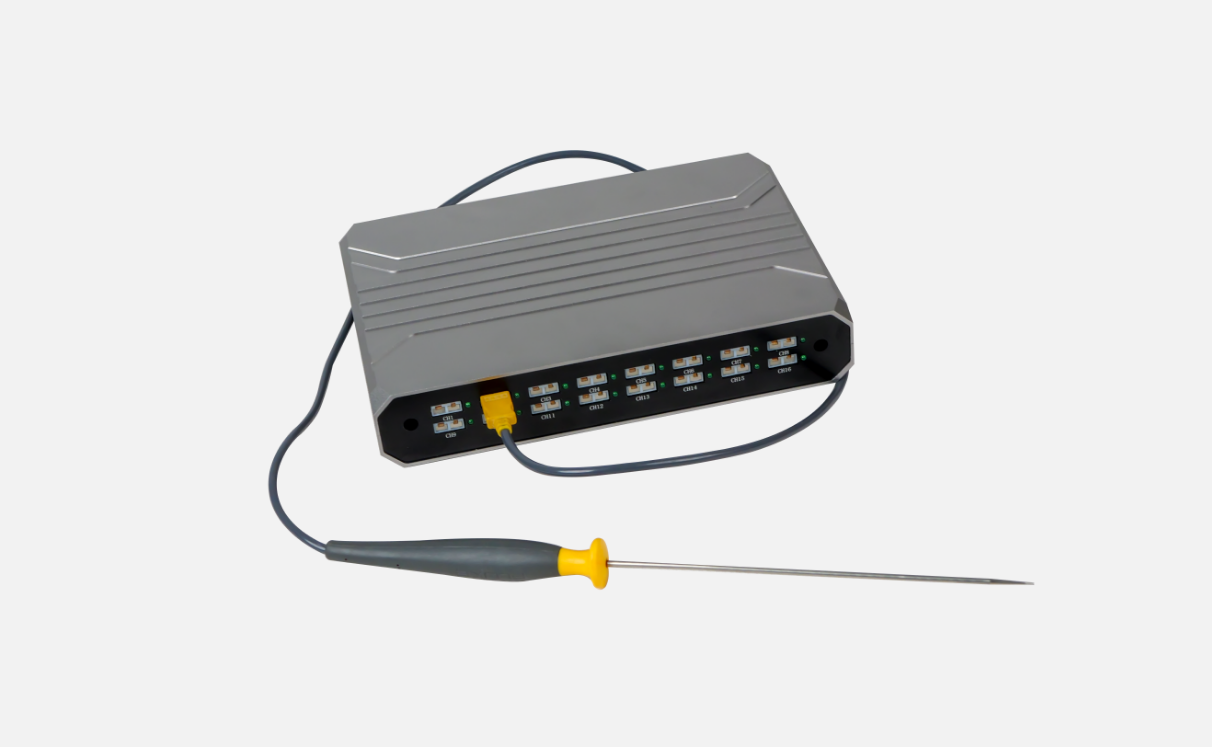

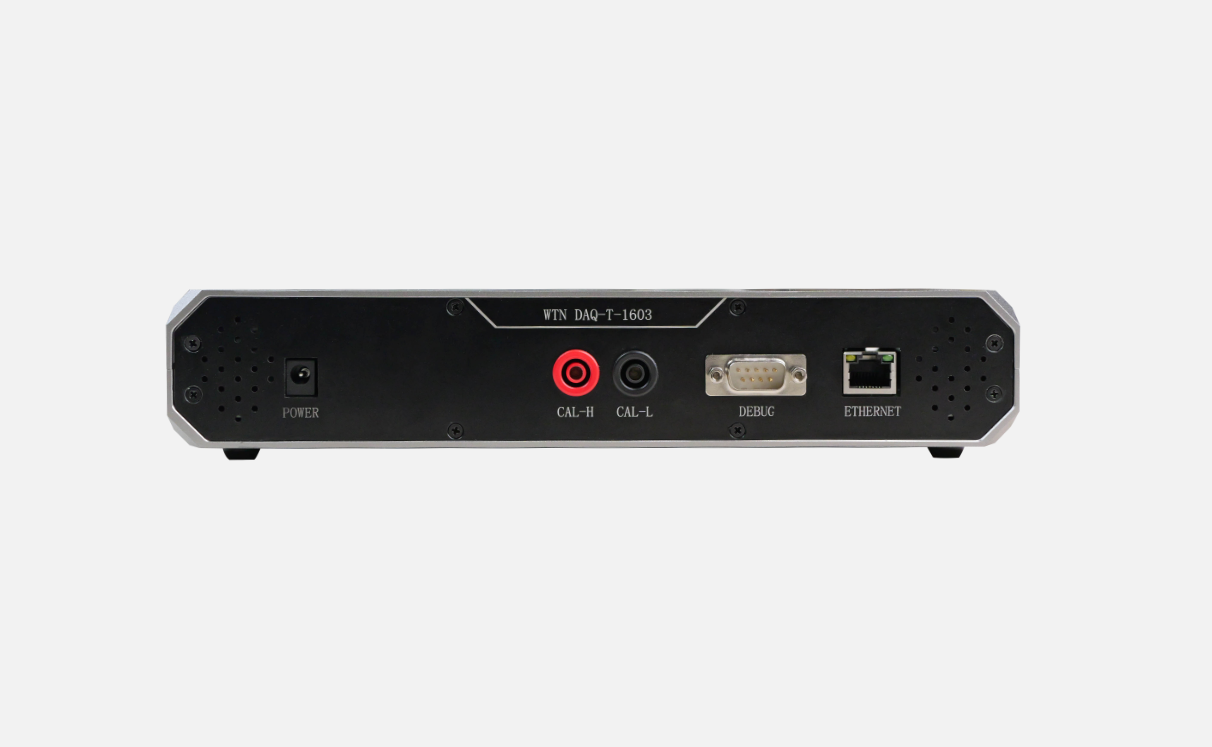

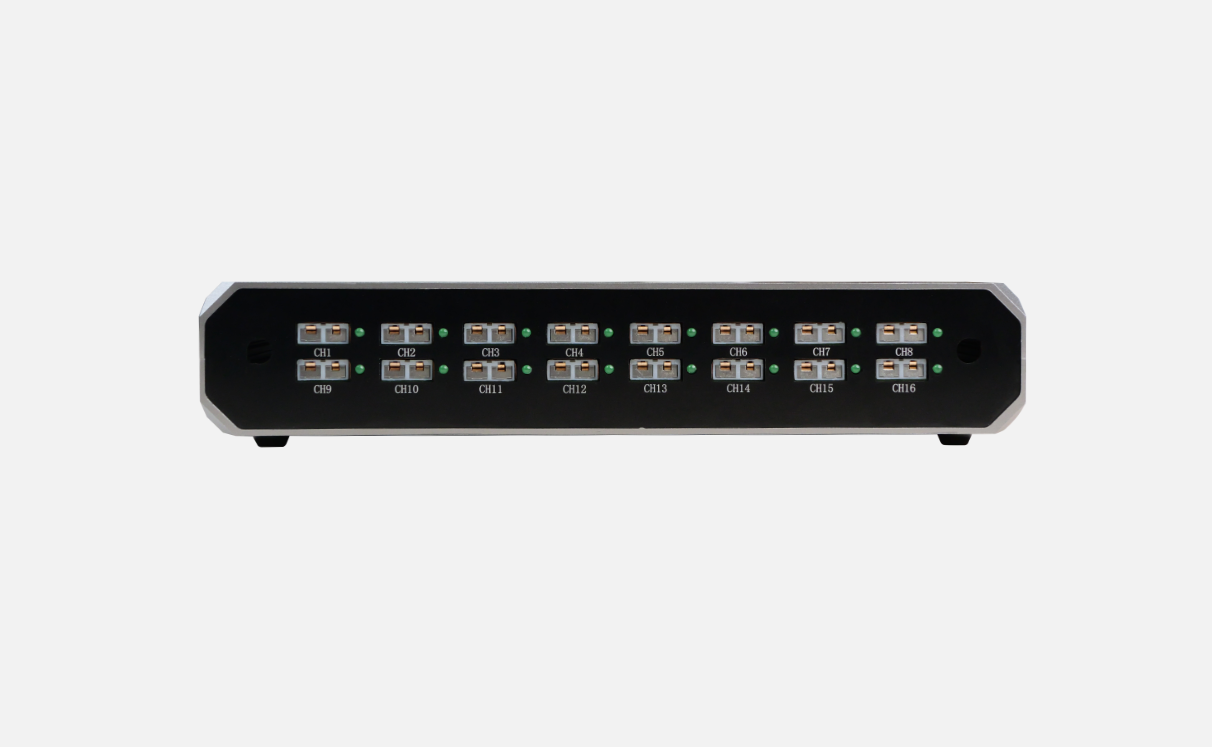

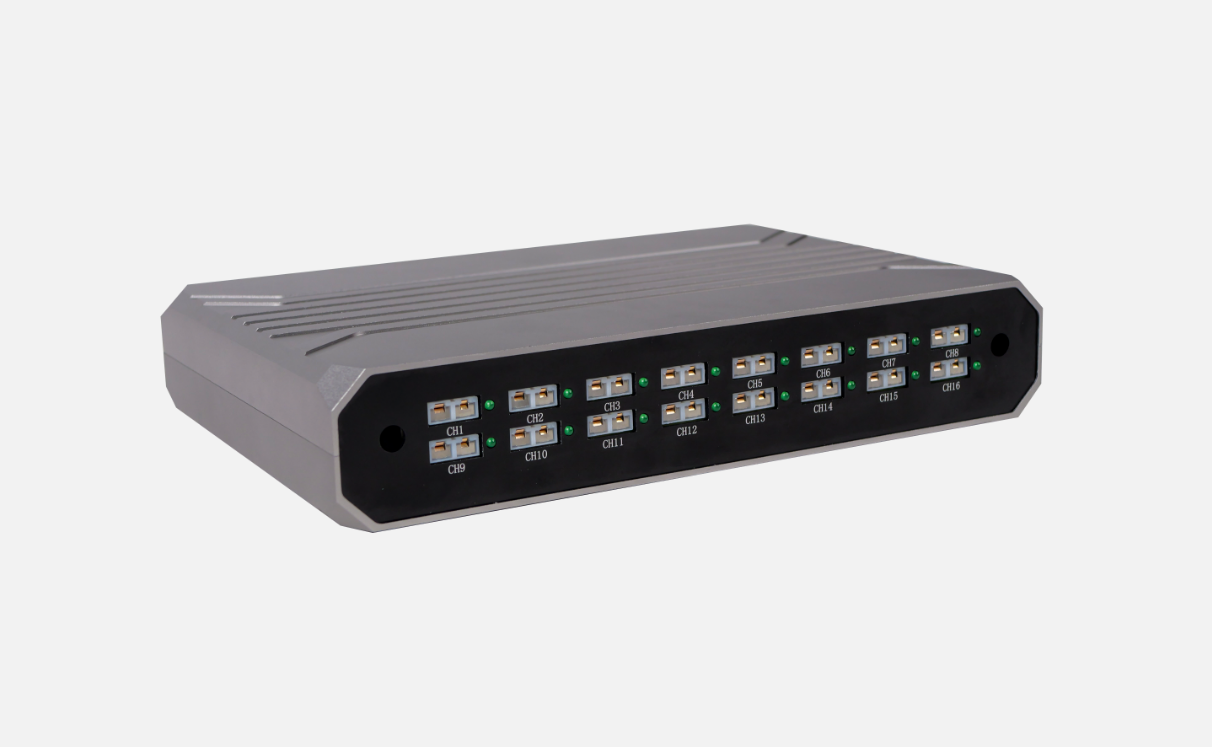

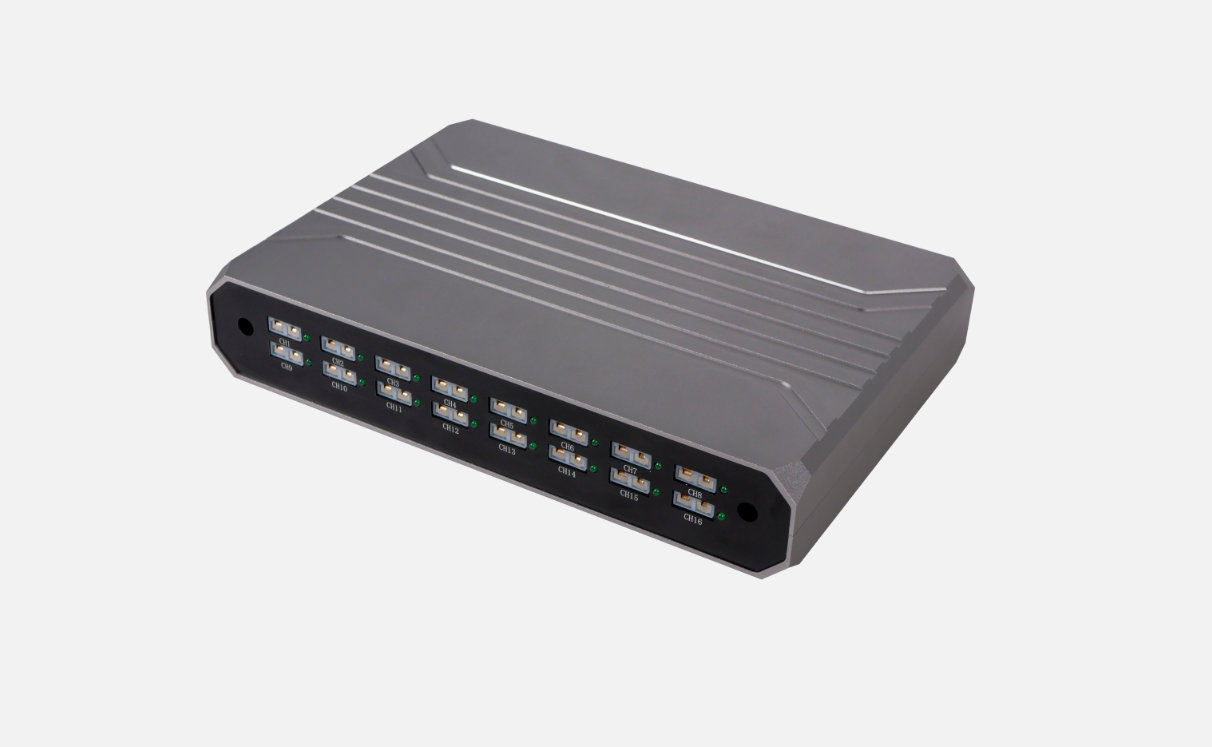

Thermocouple acquisition instrument
