Windtuner can customize and produce a full range of pneumatic probes according to customers.

All kinds of pneumatic probe design and manufacture

Micron scale 3D printing technology

10000+ probe manufacturing experience

Contact us now

Technical data

1 hole probe

Probe shapesComb,rake, etc.

Measurement point shapesSleeve, straight,ball and socket

Minimumhole diameter0.4mm

3 hole probe

Probe shapesL-shaped,straight,comb,rake,mesh,etc.

Measurement point shapesSphericalsurface,spherical,conical,etc.

Minimumhole diameter0.2mm

Speed range0~2Ma

Angle range≤±30°

5 hole probe

Probe shapesL-shaped,straight,comb,rake,mesh,etc.

Measurement point shapesSphericalsurface,spherical,conical,etc.

Minimumhole diameter0.2mm

Speed range0~2Ma

Angle range≤±45°

7 hole probe

Probe shapesL-shaped,straight,comb,rake,mesh,etc.

Measurement point shapesSphericalsurface,spherical,conical,etc.

Minimumhole diameter0.2mm

Speed range0~2Ma

Angle range≤±60°

14 hole probe

Probe shapesL-shaped,straight, etc

Measurement point shapesSpherical

Minimumhole diameter0.2mm

Speed range0~0.95Ma

Angle range≤±160°

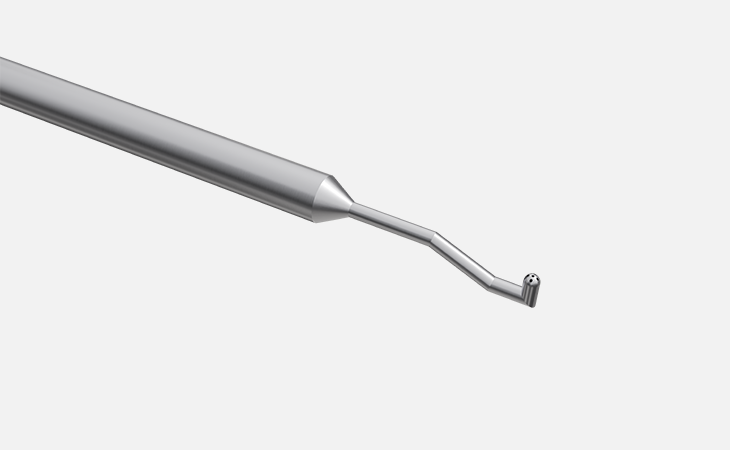

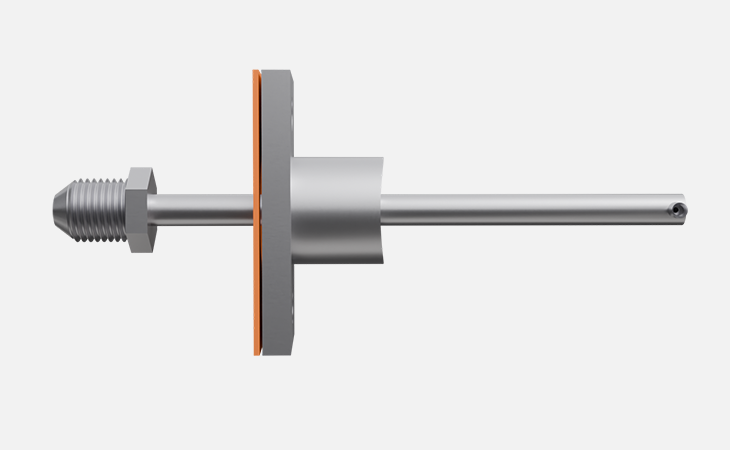

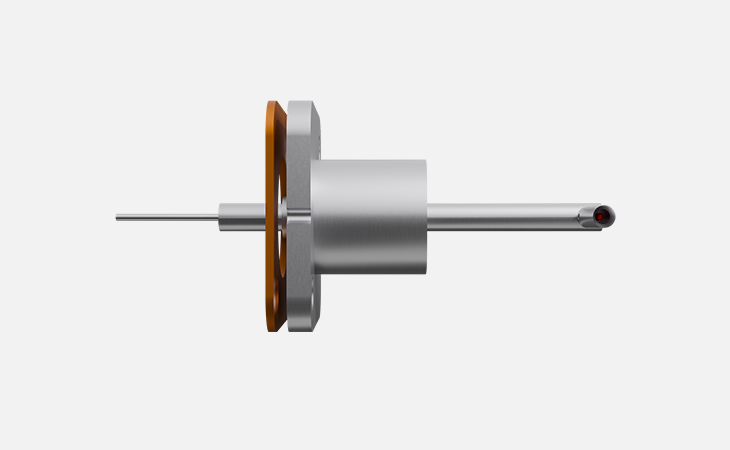

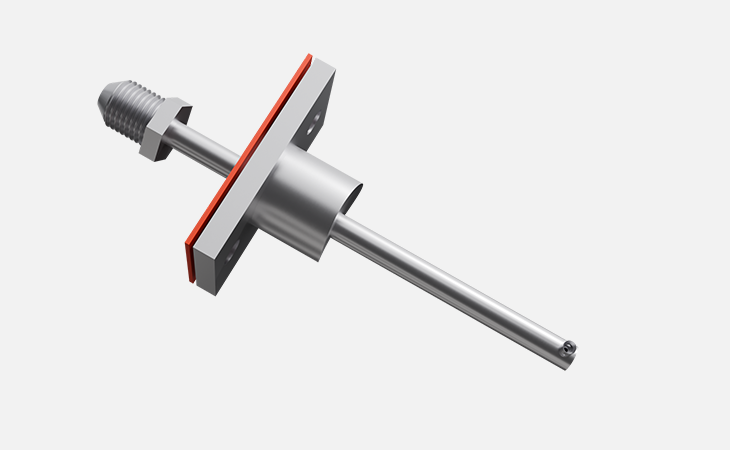

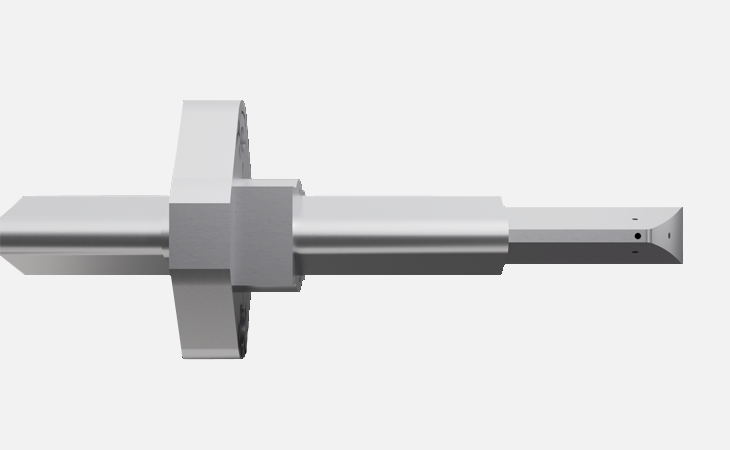

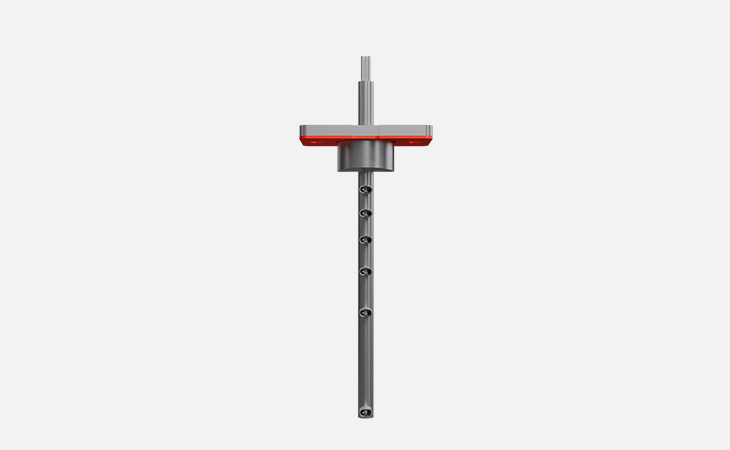

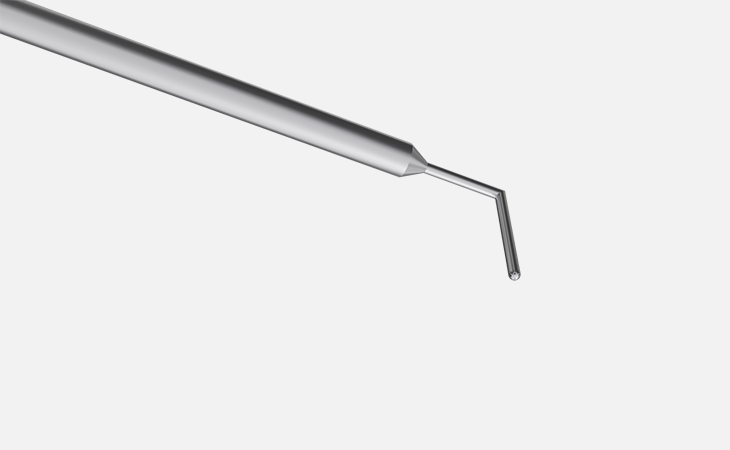

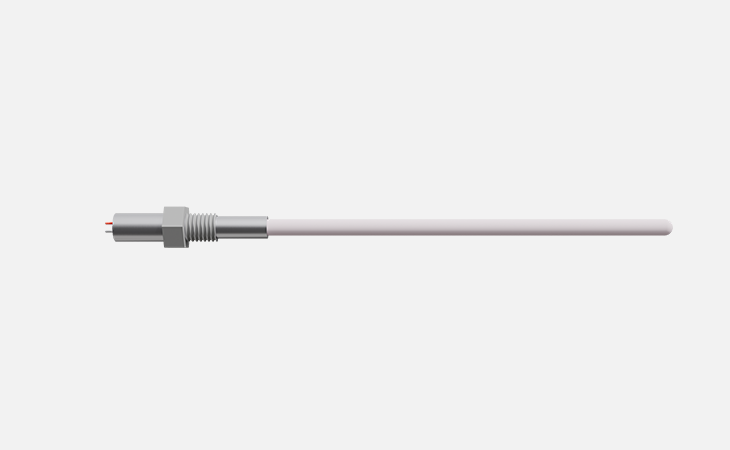

Product Gallery

  • Customisation of pneumatic probe
    4-hole probe
    5-hole probe
    7-hole probe
  • Customisation of pneumatic probe
    Customisation of pneumatic probe
  • Customisation of pneumatic probe
    Customisation of pneumatic probe
    Customisation of pneumatic probe
  • Customisation of pneumatic probe
  • Customisation of pneumatic probe
    Customisation of pneumatic probe
    Customisation of pneumatic probe
MULTI-HOLEPROBES
TOTAL PRESSUREPROBES
TOTAL TEMPERATURE PROBES
HIGH TEMPERATURE PROBES
TOTAL TEMPERATUREAND PRESSURE COMPOSITE PROBES

Design and manufacture of Windtuner pneumatic probes




Apply the world-leading micron-level metal additive manufacturing (3D printing) technology

Smaller aperture:Through additive manufacturing technology, the blocking rate is smaller and the aerodynamic performance is better.
More accurate positioning:The probe is printed in one go, allowing for a more complex probe structure.
Higher strength:Optimize the geometric mutation positions to reduce the problem of stress concentration.


Integrated services are tailor-made

Demand clarification:The customer communicates and confirms the relevant parameters of the flow field.
Probe design:Design the probe scheme according to the test requirements.
Probe processing:Determine the manufacturing process and carry out material preparation and processing.
Probe calibration:Calibrate the probe using a professional calibration wind tunnel.

Choose the product or service you need!
Apply For Trial

Our solution

Fine knowledge of the product

Wind Tunnel Outlet Uniformity Test

Dalian University of Technology Wind Tunnel Outlet Uniformity Test

Relevant case
Blade Grid Wind Tunnel Test

Xi'an Jiaotong University Blade Grid Wind Tunnel Test

Relevant case
Fan test

Hitachi air conditioning fan testing plan

Relevant case

Support center

Fine knowledge of the product

Ethernet Intelligent Pressure Scanners operation manual

Ethernet Intelligent Pressure Scanners operation manual

Learn more
Instructions for use of pneumatic probe

Instructions for use of pneumatic probe

Learn more
Windtuner brand promotional video

Windtuner brand promotional video

Learn more
Windtuner Ethernet Intelligent Pressure Scanners

Windtuner Ethernet Intelligent Pressure Scanners

Learn more

FAQs at a glance

What are the steps for calibrating pneumatic probes?
In flow field measurement, the pneumatic probe is a commonly used instrument for measuring parameters such as velocity and pressure in the flow field. To ensure the accuracy and reliability of the measurement results, the pneumatic probe needs to undergo the important operation of pneumatic probe calibration before use.
