The Windtuner intelligent pressure scanning valve is a high-performance and high-precision pressure acquisition device, specifically designed for the testing needs of aero engines, gas turbines, wind tunnel test benches, etc. It provides accurate, stable and high-performance gas pressure measurement and can be customized according to requirements to meet the personalized demands in the fluid mechanics testing process.
Pressure accuracy better than 0.05%FS
Pressure acquisition,Zero calibration, full range calibration, purging
It has multiple qualifications such as CNAS authorization and recognition

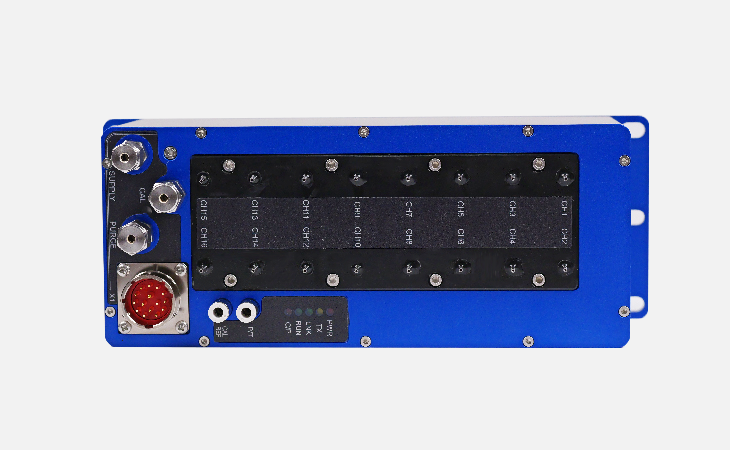

Multi-channel pressure acquisition
In addition to the pressure collection of 16 channels, it can also achieve the collection of atmospheric pressure and atmospheric temperature.
Zero calibration
Before use, perform zero calibration to ensure the accuracy of each test and avoid test result deviations caused by even the slightest error.
Full range calibration
The entire series features 16-channel one-click pressure calibration to ensure consistent equipment accuracy. Mechanical plate changing calibration is available to reduce equipment wear and tear.

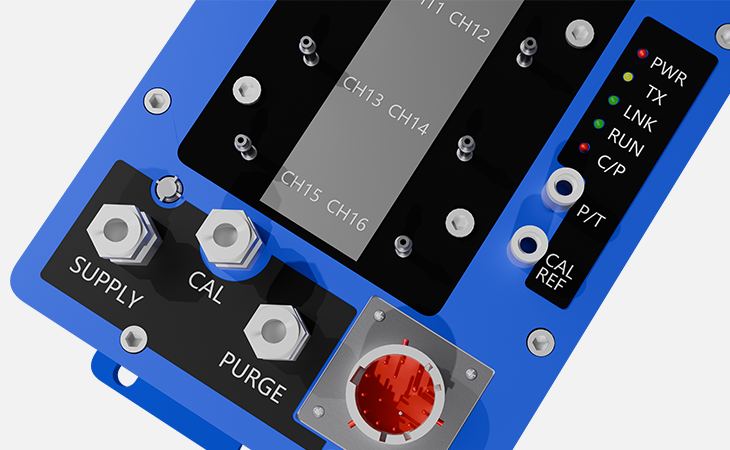

Automatic purging
Supports one-click automatic purging, suitable for more complex testing environments to continuously keep the equipment in the best condition and effectively extend the service life of the equipment.
Atmospheric pressure and temperature collection
Pressure plate replacement
Software/external trigger
Model and range of pressure scanning valveWTN-C-LA(-2.5-2.5)kPa
WTN-C-LB(-6-6)kPa
WTN-C-LC(-35-35)kPa
WTN-C-MD(-80-100)kPa
WTN-C-MF(-50-200)kPa
WTN-C-HG(0-2)kPa
WTN-C-HH(0-3.5)kPa
The above are standard modules,please contact us of other ranges.
Product parametersPower supply(18~36)VDC;<120mA
Working temperature range(0~60)℃,(-30~60)℃
Working environment humidityRelative humidity<90%,non-condensing
Accuracy level0.05 available,see equipment nameplate for details
Total thermal error±0.001%FS/℃
Product parametersA/D24
Communication protocolsTCP/IP,UDP
Sampling frequency≤500Hz/CH(support for self-defined adjustment by users)
Trigger modeSupport software/hardware/Timed triggers
Number of channels16 channels/unit

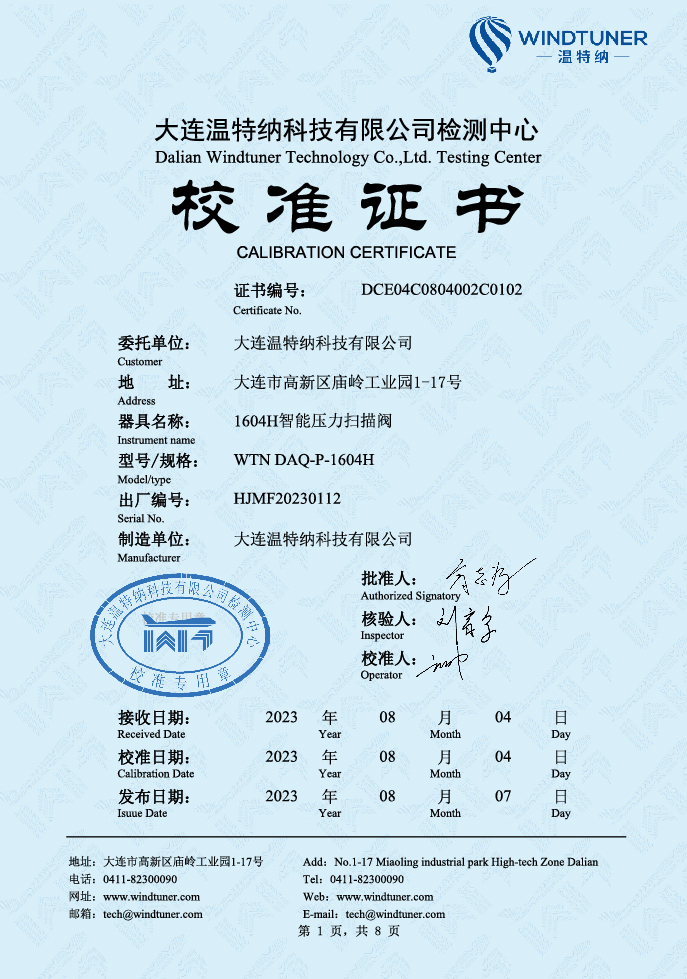

Certifications & Accreditations

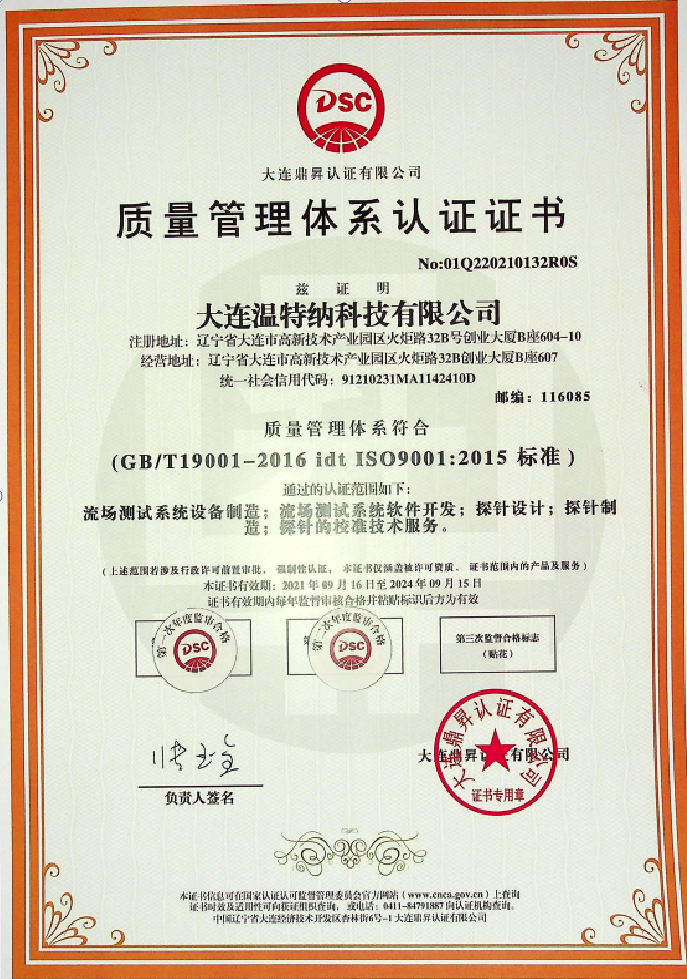

Products are manufactured inaccordance with GB/T9001-2016idtIS09001:2015 standard require-ments for flow field measurementand control equipment, and haveobtained the certificate of qualitymanagement system.

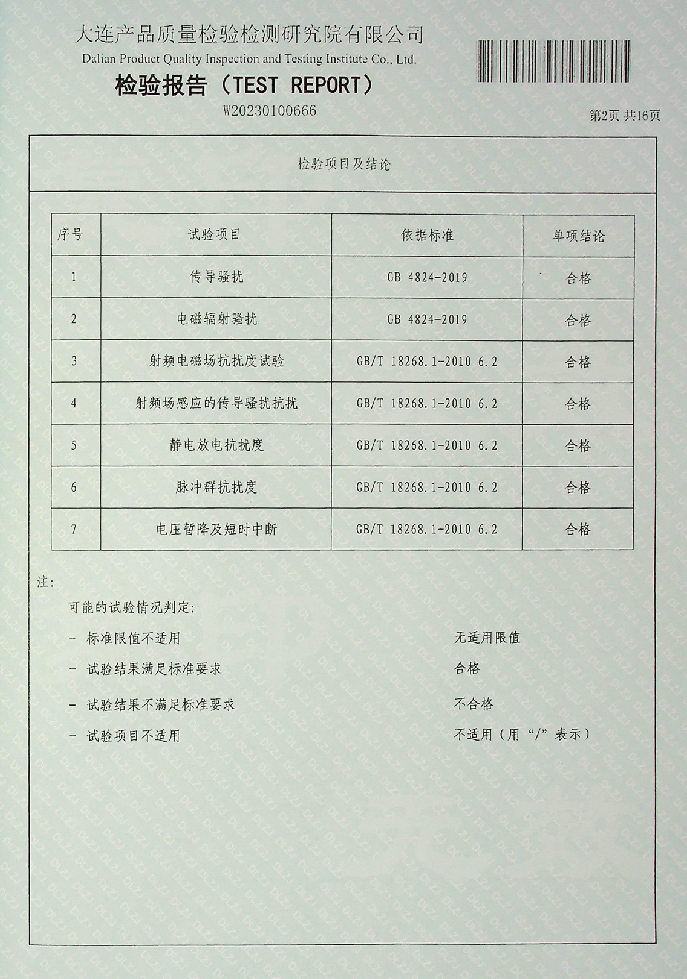

Products are subject to electro-magnetic compatibility testsaccording to GB/T18268.1-2010requirements, and have obtainedthe certificate issued by thelaboratory authorised andrecognised by CNAS.
Products are calibrated in accor-dance with JJG875-2019 and JJF(JG)329-2023,and have obtainedcalibration certificate.
Products comply with the safety,health and environmental require-ments of European laws andregulations, and have obtainedthe CE certificate.

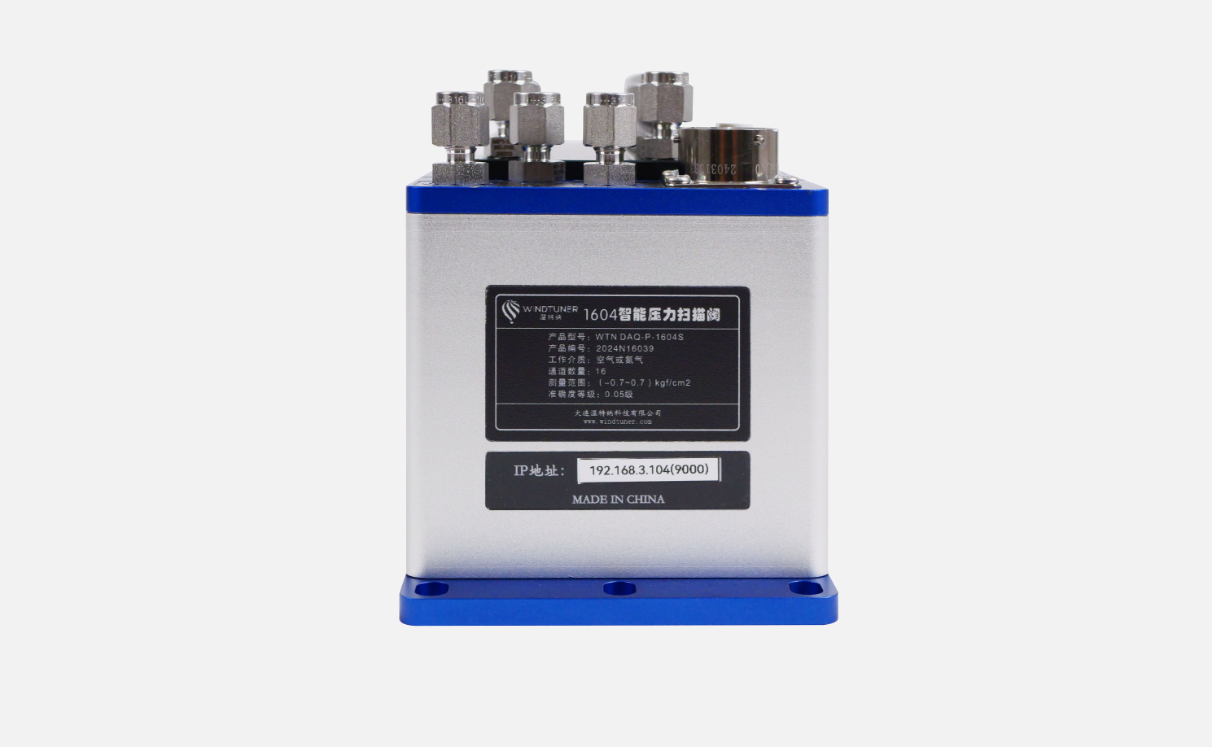

Intelligent pressure scanning valve

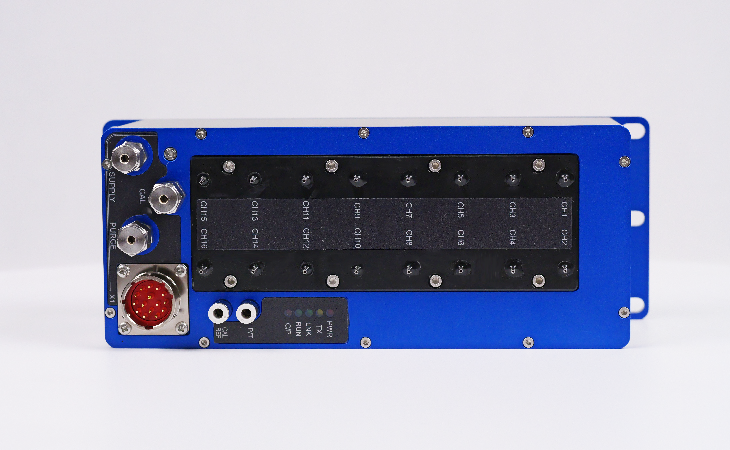

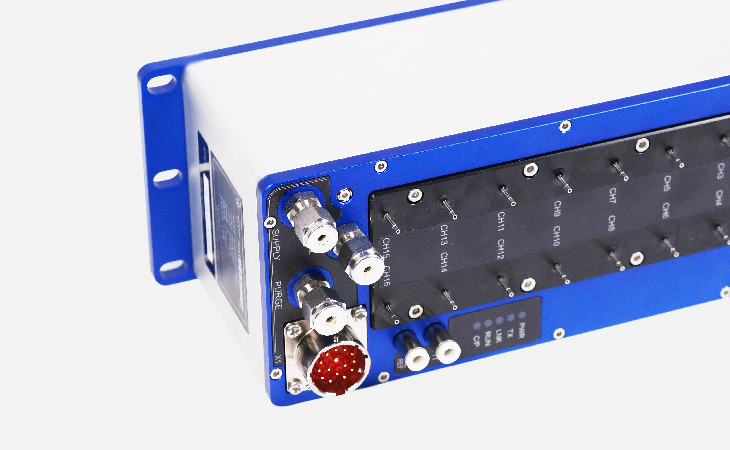

Windtuner intelligent pressure scanning valve
high accuracy，Stable performance，Small in size
Four-level precision guarantee
It integrates 16 strictly selected pressure sensors internally
High-precision pressure sensor module with self-calibration
Full-range standard source
Full-range high and low temperature chamber
Triple design guarantee
O-ring design
Steel ball sealing
Valve body processing tolerance

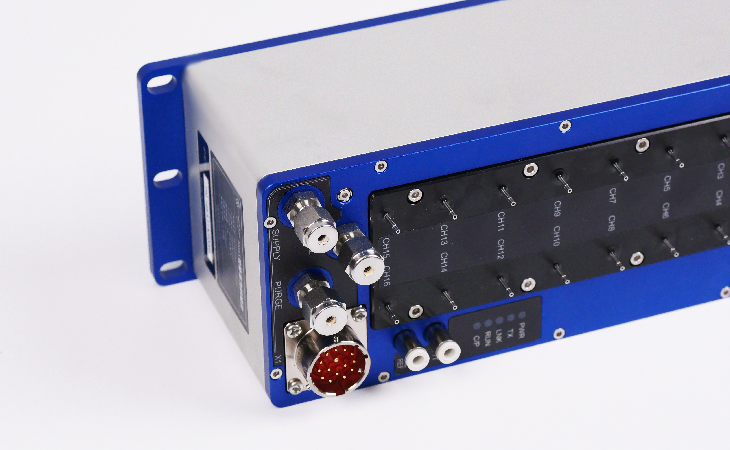

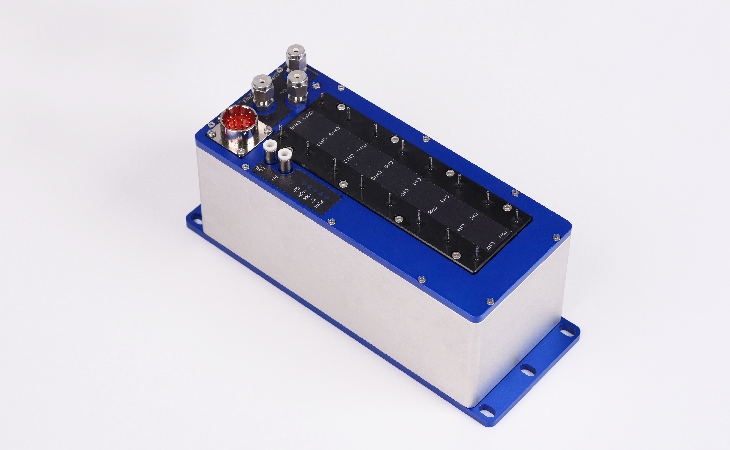

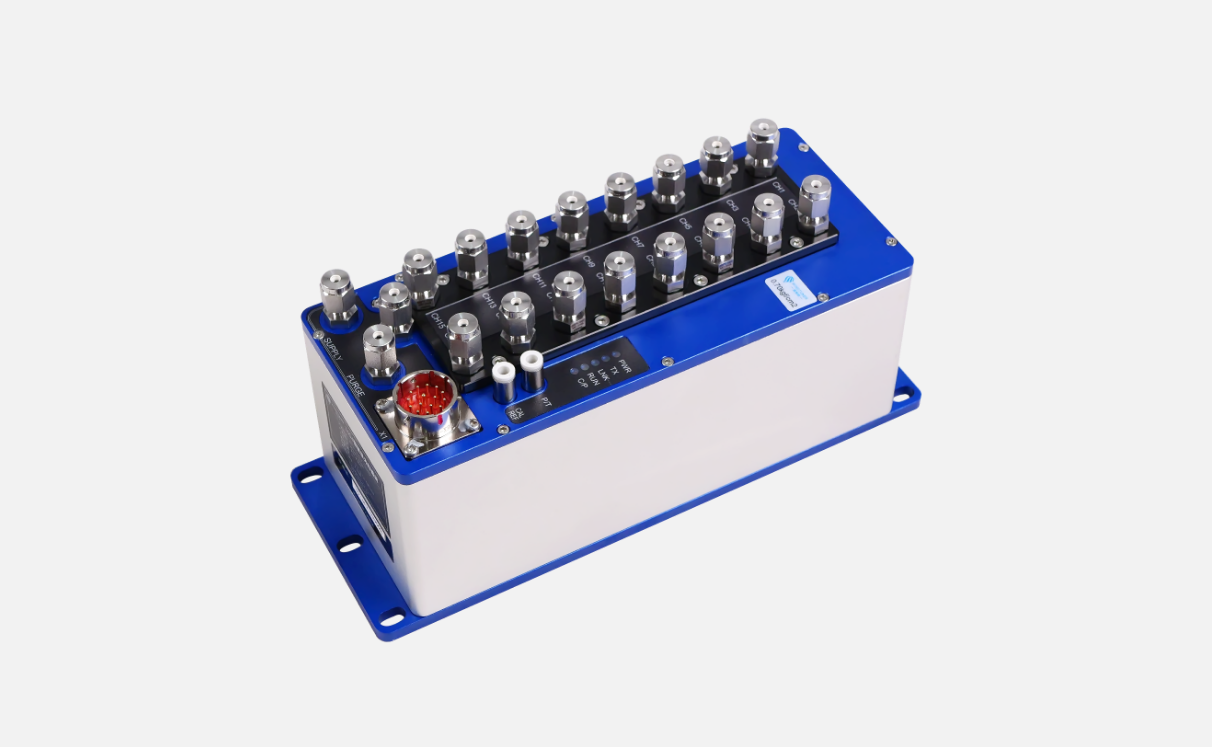

Compact in size, the bare machine weighs 3.4KG and can be easily integrated into various test benches or equipment
