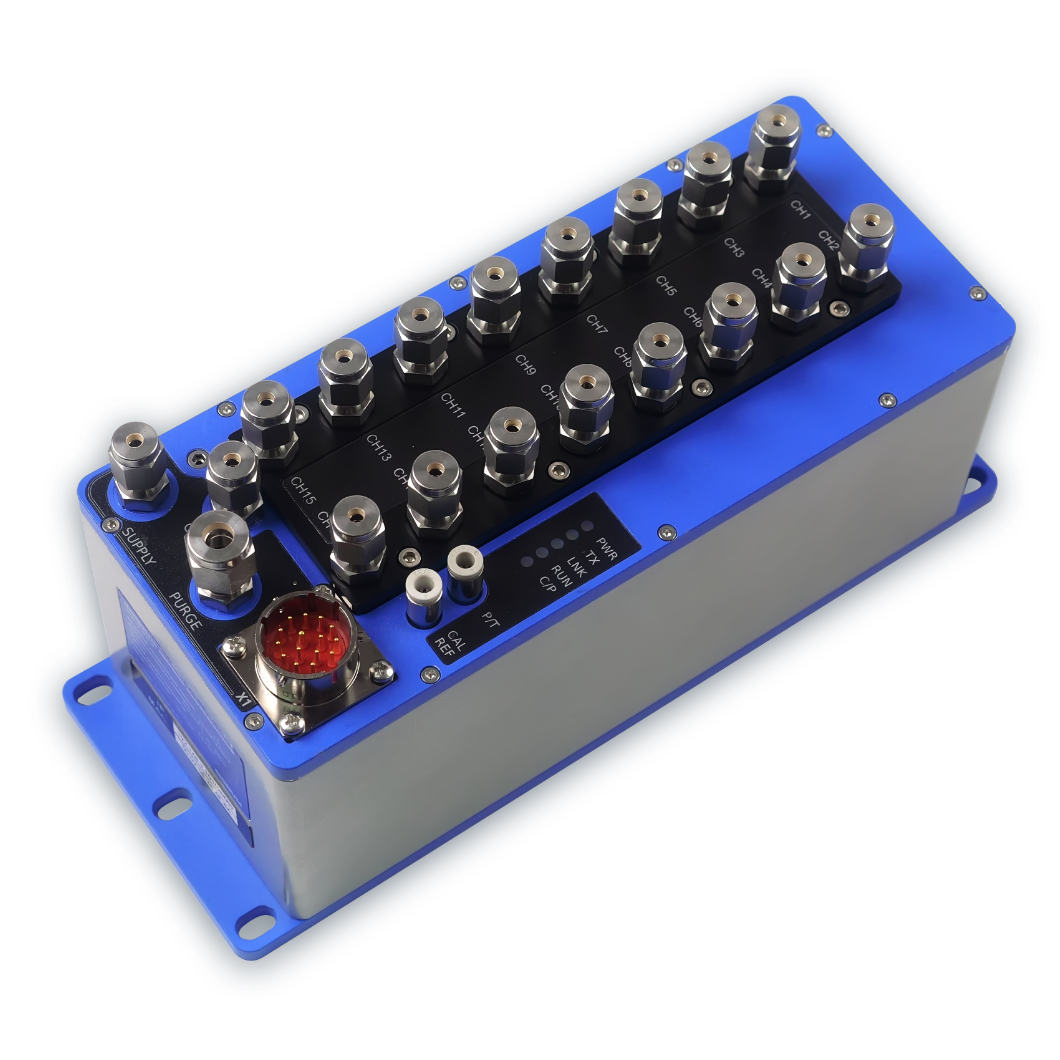

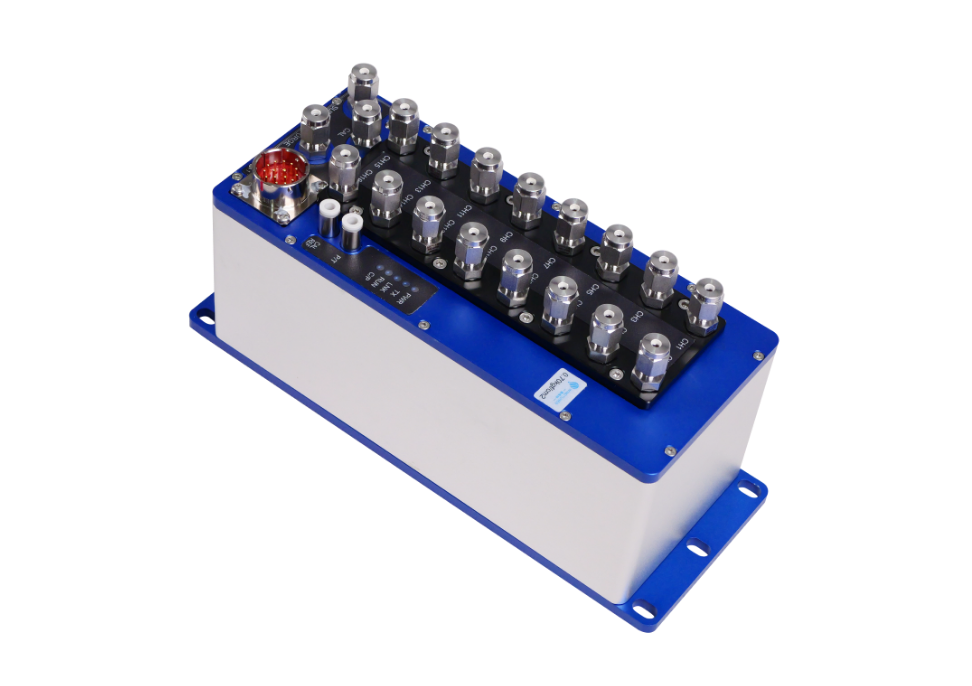

The Ethernet Intelligent Pressure Scanner
Accurate , Stable , High-Performance
The Windtuner Ethernet Intelligent Pressure Scanner is specifically engineered for aircraft engines, gas turbines, and wind tunnel facilities. Our scanners can be custom designed and produced to meet special and individual demands of specific fluid dynamic
Core Properties
Accuracy as low as ±0.05% full scale
Maintenance-free internal pneumatic valve system
Data acquisition, purging, calibration functions
Supports full-scale calibration, internal zeroing, and configurable multi-point calibration
Complies with IEEE1588V2-2008 PTP
Provides timestamp output for real-time data stream collection
Sampling rate of 500Hz/channel
Remote firmware updates & custom software solutions
Traceable CNAS calibration certificates available
Customization for pressure ranges between 0-850psi
TCP/IP communication protocol
Applicable in wind tunnel tests, flight test programs, turbomachinery applications, and other testing fields
Choose the product or service you need!Product Parameters
| Indicators | Parameters / Descriptions |
|---|---|
| Power supply | (18~36) VDC ; <120mA |
| Working temperature range | (0-60)℃, (-30-60)℃ |
| Working environment humidity | Relative humidty<90%, non-condensing |
| Accuracy class | Class 0.05 is optional; please refer to the equipment nameplate for details |
| Total thermal error | ±0.001% FS/℃ |
| Indicators | Parameters / Descriptions |
|---|---|
| A/D | 24 |
| Communication protocols | TCP/IP, UDP |
| Sampling frequency | ≤500Hz/CH (support for user-defined adjustment by users) |
| Trigger mode | Support software/hardware/Timed triggers |
| Number of Channels | 16 channels/unit |
Certifications & Accreditations
CNAS
Calibration testing center accredited by CNAS
CE
Products meet the requirements for CE certificate of EU
ISO
Windtuner pressure scanners match the ISO standard
BAC
Products certified by GJB 9001C-2017 military-grade standards
Global Partnerships
Expand the market with China’s leading flow field measurement enterprise
Our solution
Find out how we can help you
Support center
Know our products in detail
News
30 Mar 2026
Pressure Scanners: Multi-Channel Measurement for Complex Flow Fields
In aerodynamic testing, the difference between a usable dataset and an inconclusive one often comes down to how many points can be measured at once. Our pressure scanner uses 16 channels to capture 16 key points simultaneously, by connecting it with other scanners and adding more probes to the system, it becomes relatively easier to map the full spatial structure of the flow field.
29 Mar 2026

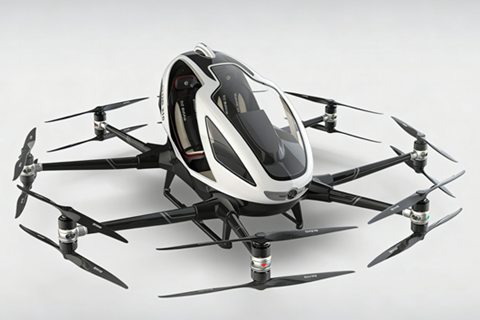

Pressure Scanners Take Flight: The Measurement Backbone of eVTOL Development
The first eVTOL aircraft to receive type certification in China cleared its final airworthiness hurdle in early 2025. The several years of aerodynamic testing it endured generated more pressure data than most conventional aircraft programs accumulate in decades.
25 Mar 2026
Precision Under Pressure: How Advanced Measurement Systems Drive Turbomachinery Innovation
The modern turbomachinery test cell is a study in controlled chaos. Inside a compressor rig spinning at tens of thousands of RPM, engineers must capture three-dimensional flow fields with microsecond timing precision, correlate data across dozens of channels, and extract usable insights from terabytes of pressure measurements.
24 Mar 2026
Windtuner to Showcase Advanced Aerodynamic Solutions at Turbo Expo 2026
Windtuner has been invited to join the 2026 Turbo Expo, a globally influential technical conference and exposition of turbomachinery, from June 16th to 18th in Milan, Italy.
FAQs at a glance
What is the stability test of Intelligent pressure scanning valve？
Each model of Windtuner machine undergoes over 10,000 hours of stability testing before mass production. This ensures that each model of machine can achieve high standards of performance and reliability when delivered to customers.
Where can I find Windtuner's product pricing?
Windtuner offers a comprehensive product line and service portfolio, most of which are customizable solutions. Pricing varies depending on your specific requirements.
To receive a tailored quote, please click the "Leave a message" button in the lower-right corner. Our technical consultant will contact you within 24 hours to discuss your needs and provide a customized solution with pricing.
To receive a tailored quote, please click the "Leave a message" button in the lower-right corner. Our technical consultant will contact you within 24 hours to discuss your needs and provide a customized solution with pricing.
What are the steps for calibrating pneumatic probes?
In flow field measurement, the pneumatic probe is a commonly used instrument for measuring parameters such as velocity and pressure in the flow field. To ensure the accuracy and reliability of the measurement results, the pneumatic probe needs to undergo the important operation of pneumatic probe calibration before use.
