When laboratories evaluate pressure scanners for procurement, they look beyond basic functionality. Adaptability to specialized applications, long-term stability, and data reliability under demanding research conditions are decisive factors. This is where Windtuner pressure scanners demonstrate a clear competitive edge.
High Accuracy and High Resolution for Advanced Research
Accuracy defines the value of any fluid dynamics measurement system, especially in laboratory research. Pressure scanners are frequently used in high-accuracy flow field measurements, where even minor deviations can influence conclusions or invalidate test outcomes. For aerodynamic laboratories, synchronized multi-point pressure data is essential when analyzing complex flow structures.

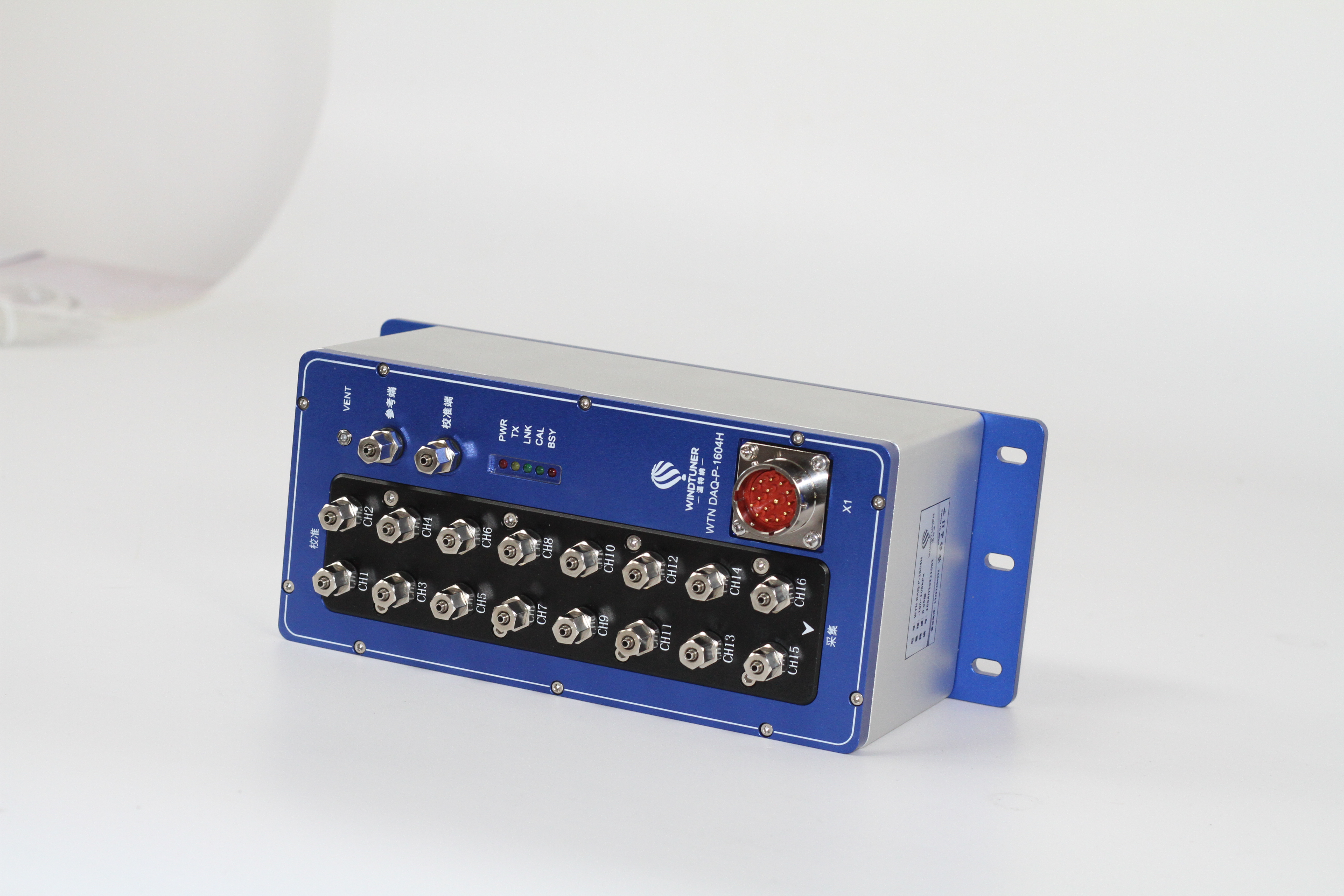

Windtuner pressure scanners achieve measurement accuracy of ±0.05% FS, meeting the strictest laboratory requirements. Unlike traditional single-point pressure sensors, Windtuner pressure scanners capture multiple pressure points simultaneously, producing a more complete and reliable representation of the flow field. This high accuracy extends beyond static and dynamic pressure to derived parameters such as flow angle and velocity, providing a solid foundation for aerodynamic analysis, flow visualization, and flight simulation research.
Broad Operating Range and Strong Adaptability
Laboratory experiments often involve diverse flow regimes and complex operating conditions. A pressure scanner must perform consistently from subsonic to supersonic applications and across flow states that include turbulence, vortices, and unsteady conditions. The usable range of a pressure scanner directly determines its versatility in research environments.
Windtuner pressure scanners maintain high accuracy across wide pressure and temperature ranges, even when external conditions fluctuate. In laboratory settings where temperature variation, humidity, and environmental disturbances are unavoidable, this adaptability protects data quality. For demanding applications such as gas turbine testing under high-temperature and high-pressure conditions, Windtuner pressure scanners continue to operate with stability and confidence, supporting research that pushes technical boundaries.
Real-Time Data Acquisition and High-Speed Response
Many aerodynamic experiments require more than steady-state measurements. Wind tunnel testing and aircraft performance evaluation often involve rapidly changing flow conditions, where transient pressure behavior carries critical information. Pressure scanners must respond quickly to capture these dynamics in real time.
Windtuner pressure scanners support sampling frequencies up to 500 Hz, delivering low-latency, high-fidelity data streams. This high-speed response allows researchers to observe instantaneous flow variations, refine experimental control strategies, and improve model accuracy without data loss or cumulative error. In high-frequency, high-dynamic-range experiments, this capability becomes indispensable.
Multi-Point Measurement and Precise Synchronization
One of the defining advantages of a pressure scanner over conventional sensors is its ability to measure multiple pressure points simultaneously. In three-dimensional and highly non-uniform flow fields, single-point measurements fail to capture the full picture.
Windtuner pressure scanners provide 16 synchronized channels per unit. For test setups requiring hundreds of measurement points, multiple scanners can be networked through Windtuner multi-channel connectors, forming a scalable, star-topology measurement system. With support for IEEE1588V2-2008 Precision Time Protocol, all data streams remain time-aligned across devices. This synchronization enables accurate multi-dimensional flow analysis and gives researchers stronger insight into aerodynamic optimization and design validation.
Long-Term Stability and Research-Grade Reliability
Stability over time is a critical concern for laboratories conducting long-duration experiments and repeated calibration cycles. Pressure scanners must deliver consistent performance despite temperature variation, humidity changes, and electrical noise in complex test environments.
Windtuner pressure scanners integrate intelligent control systems with automatic calibration and self-diagnostic functions. These features allow the system to monitor its own performance and maintain accuracy throughout extended operation. Robust anti-interference design further enhances data reliability in noisy or high-energy flow environments, ensuring researchers can trust their results over the full life cycle of the instrument.
Easy Integration and Research-Friendly Interfaces
Laboratories value instruments that integrate smoothly into existing test systems. Interface compatibility and efficient data output directly influence workflow efficiency, particularly in multi-instrument setups.
Windtuner pressure scanners feature standard Ethernet interfaces and support TCP/IP and UDP communication protocols. Researchers can connect directly to computer systems for remote monitoring, real-time visualization, and data analysis. This streamlined integration reduces setup time, simplifies system management, and allows laboratories to focus on research rather than instrumentation complexity.
Strong Long-Term Cost Effectiveness
High-performance pressure scanners require an upfront investment, but research laboratories evaluate cost over the full operational lifespan. Measurement accuracy and system stability directly affect experiment efficiency, recalibration frequency, and maintenance demands.
With high accuracy, multi-point capability, and intelligent compensation functions, Windtuner pressure scanners reduce calibration workload, minimize maintenance interruptions, and lower the risk of data rework caused by measurement error. Over time, these advantages translate into lower total operating costs and higher research productivity.
A Reliable Measurement Partner for Academic Laboratories
When laboratories select pressure scanners, they prioritize accuracy, multi-point measurement, real-time response, long-term stability, interface compatibility, and overall cost efficiency. As a core instrument in aerodynamic research, the pressure scanner defines the quality of flow field data and the confidence behind every conclusion.
Windtuner pressure scanners deliver accurate, synchronized, and trustworthy data that supports advanced flow analysis and experimental optimization. As measurement technology continues to evolve, Windtuner remains committed to driving progress in both scientific research and industrial applications through reliable, research-grade flow measurement solutions.
